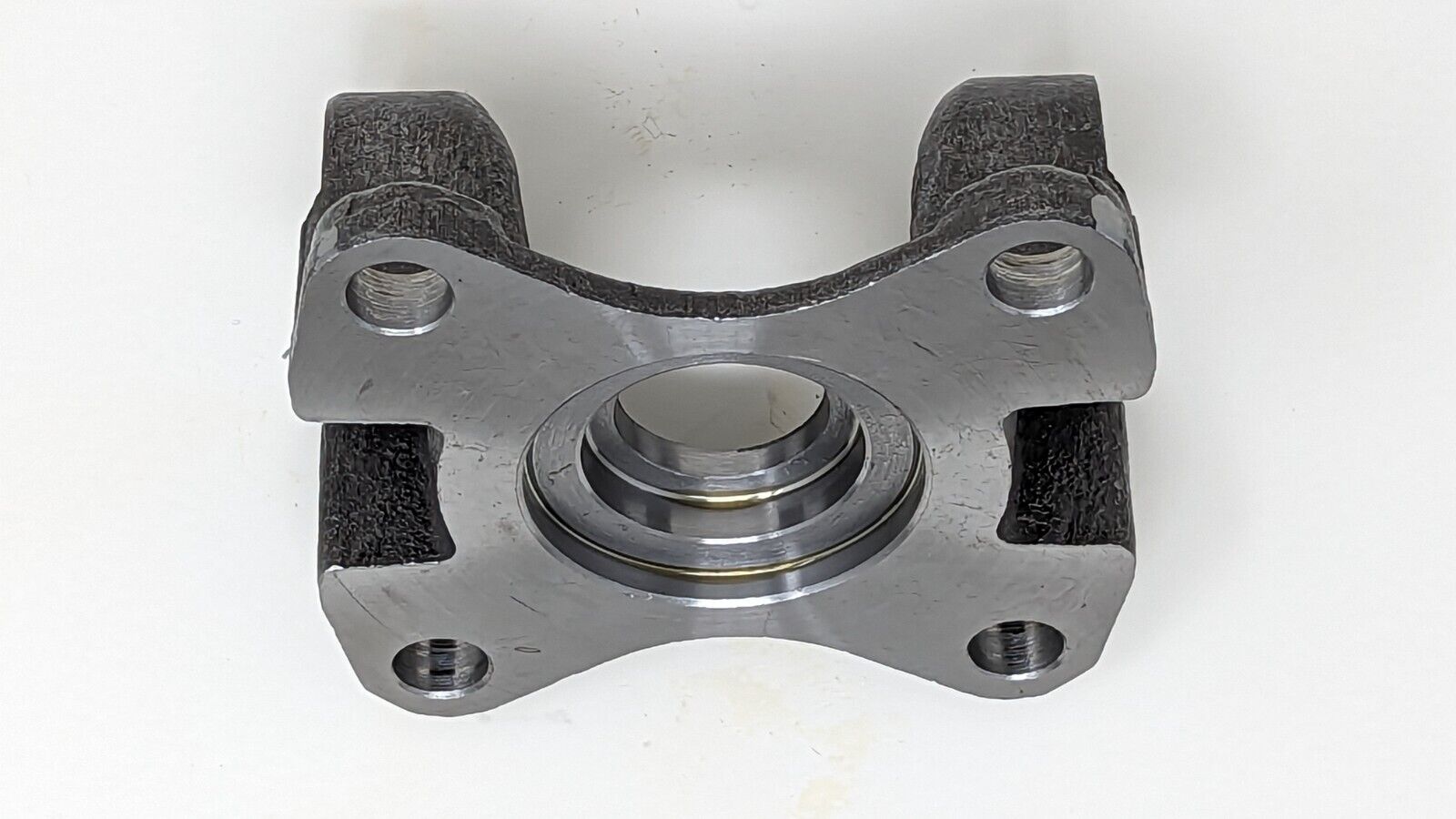

DL3Z4782A
Call for price: 1-866-944-6288
| Series | 1350 |
| Flange Or Swing Dia. In. (A) | 5.250 |
| Invoice | LIGHT DUTY JOINT |
| Bolt Circle Dia. In. (B) | 4.250 |
| Bolt Hole Dia. In (B) | .500 – DRILLED |
| Number Of Bolt Holes | 4 |
| Pilot Dia. M=Male F=Female (C) | 2.000 – FEMALE |
| Flange Face To C/L In. (G) | 1.625 |
| Material | Steel |
| Outside Yoke Dimension In.(E) | 3.875 |
| Yoke Bearing Dimension In. (D) | 1.888 |
| Design | Square |
Ford 8.8″ rear driveshaft applications
SKU:
DL3Z4782A
Category: Drive Shaft Components
Additional Information
Same as :
DL3Z4782A,
DL3Z-4782-A,
4L3Z4782AC,
4L3Z-4782-AC,
9L3Z4782B,
9L3Z-4782-B,
AL3Z4782A,
AL3Z-4782-A,
F65Z4782AA,
F65Z-4782-AA
F75Z4866GA,
F75Z-4866-GA,
36706,
3-2-1579,
N3-2-1579F,
